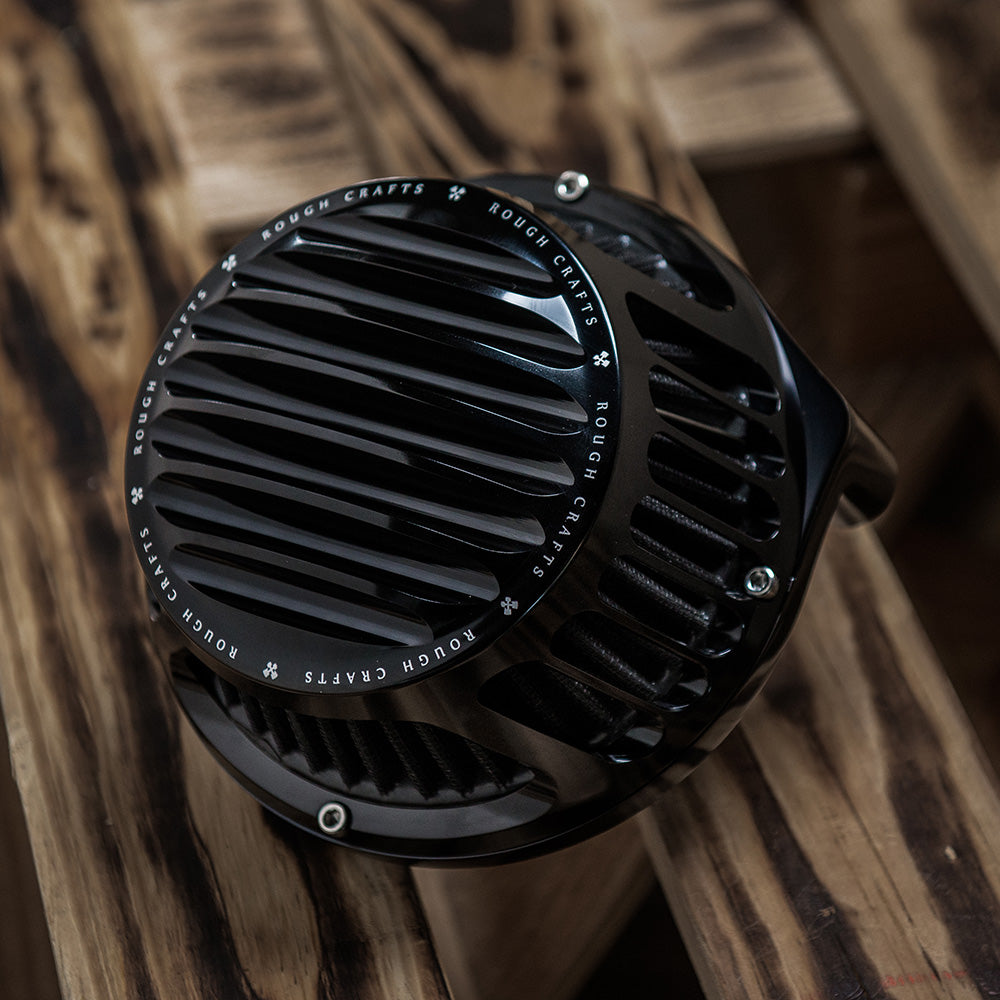

Rough Crafts® Round Air Cleaner, Black
The Rough Crafts® Round Air Cleaner features an exposed filter design and sculpted CNC machined fins resulting in increased performance and style. Black anodized billet and the black performance air filter bring signature Rough Crafts® style to any machine
- CNC machined from forged billet aluminum
- Signature Finned styling
- Round shaped intake with a low profile for ample leg clearance
- Utilizes Arlen Ness® Patented hidden breather system & oil catch reservoir
- High performance black pre-oiled air filter
- Increases horsepower, torque & mileage
- Eliminates oil blow-bye issues on M8 engines
- Black anodize finish
California Air Resource Board: Executive Order D-639-12_R-01
California Prop 65:
Learn More
FORGED BILLET ALUMINUM BACKING PLATE:
- CNC machined from forged billet aluminum
- Features Arlen Ness Patent-Pending next generation hidden breather technology. Each hidden breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes. This eliminates the need for any external hoses or hardware for a virtually closed loop system
- Radius air inlet for unobstructed airflow
- Specially designed breather bolts are hidden under billet covers for a clean look
- Eliminates oil blow-bye issues associated with M8 engines by directing any excess breather oil back into the engine
- Arlen Ness Patent-Pending Oil Catch / Reservoir. To ensure no oil saturates the filter and restricts your airflow, the integrated oil catch collects any excess engine oil before it reaches the air filter. Bolt-on design allows oil catch to be serviced when you service the filter element
PERFORMANCE AIR FILTER:
- Black pre-oiled performance air filter
- Tapered filter body designed to accept the clear polycarbonate top
- Re-usable / washable filter
Available Rough Crafts Matching Accessories:
- Finned Teardrop Style Air Cleaners
- Grips
- Foot & Shift Pegs
- Engine Covers: Cam Cover & Rocker Box Top Covers
99-17 TWIN CAM (EXCEPT: FBW)
- 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
- 1999-2006 Twin Cam CV Carb
- *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT
08-16 TOURING / 16-17 SOFTAIL (FBW)
- 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
- 2016-2017 Softails
- 2016-2017 Dyna FXDLS
- 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
- *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)
91-UP XL SPORTSTER
- 1991-up Sportster 883 / 1200 with CV Carb or Delphi EFI
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
- 2017-up FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR
- 2018-up Softail Models
BACKING PLATE ASSEMBLY (FITMENT SPECIFIC)
08-16 FLT / 16-17 SOFTAIL & FXDLS (FBW)
Backing Plate: 18-200-1B
Backing Plate Spacers: 18-476-3B (2)
Breather Bolts: 18-472-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-510-2
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
00-17 TWIN CAM (EXC. FBW)
Backing Plate: 18-201-1B
Backing Plate Spacers: 18-472-2B (2)
Breather Bolts: 18-472-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
91-UP XL SPORTSTER
Backing Plate: 18-202-1B
Backing Plate Spacers: 18-202-2B (2)
Breather Bolts: 18-202-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-500-5 (2)
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
17-UP M8 MODELS
Backing Plate: 18-203-1B (No Spacers Needed)
Breather Bolts: 18-457-4Z (2)
O-Rings (4 pack): H-024-4
Throttle Body Gasket: 18-457-3
Throttle Body Hardware, 1/4-20 x 1: H-658Z (3)
Shooter Tubes (2 pack): BT-001
OIL CATCH ASSEMBLY
Oil Catch / Reservoir: 18-392-3
Oil Catch Gasket: 18-392-4
Oil Catch Hardware, 8-32 x 3/4: H-619S (2)
OUTER COVER ASSEMBLY
Clear Tear Outer Cover, Black: 18-976-1B
Outer Cover Hardware, 10-24 x 5/8: H-627S (3)
Tear Drop Rear Cover Strip, Black: 18-977-4B
Domed Polycarbonate Window: 18-976-2
BLACK PRE-OILED AIR FILTER: 18-090U
Warning:
