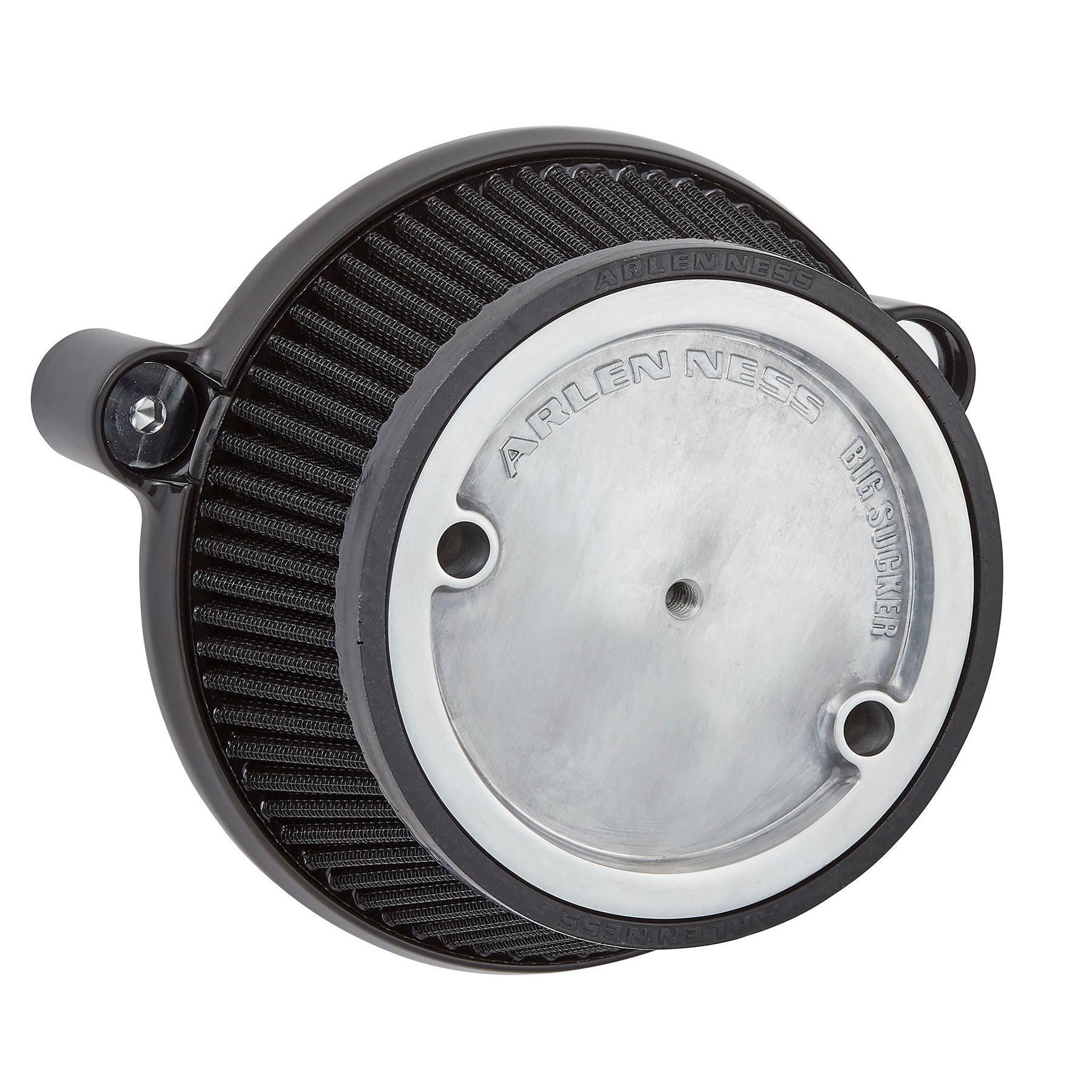

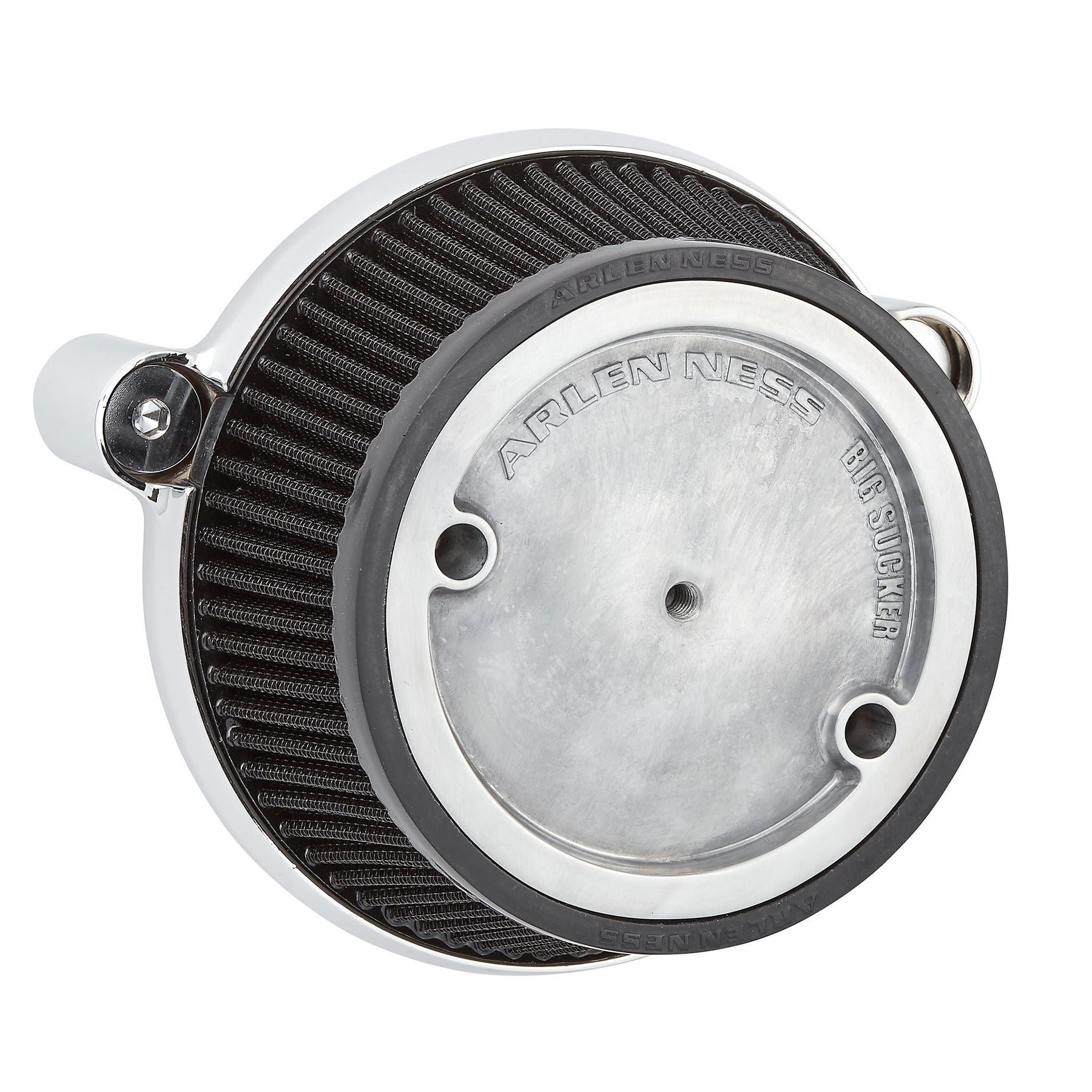

Big Sucker™ Stage 1 Air Cleaner For Milwaukee-Eight®
$179.95
The new Big Sucker™ Stage 1 performance intake for Milwaukee-Eight® (M8) engines adds new features to the original industry leading air cleaner. The new patent-pending hidden breather system is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes
- Increases Horsepower & Torque
- Eliminates Oil Blow-bye Issues Associated with M8 Engines
- Black Pre-Oiled High Performance Filter
- Patented backing plate technology (US Patent: US 10,851,741 B1)
- One-Piece Aluminum Backing Plate
- Aluminum Filter Top Plate Design Eliminates Internal Mounting Hardware
California Air Resource Board: Executive Order D-639-12_R-01
California Prop 65:
Learn More
Description

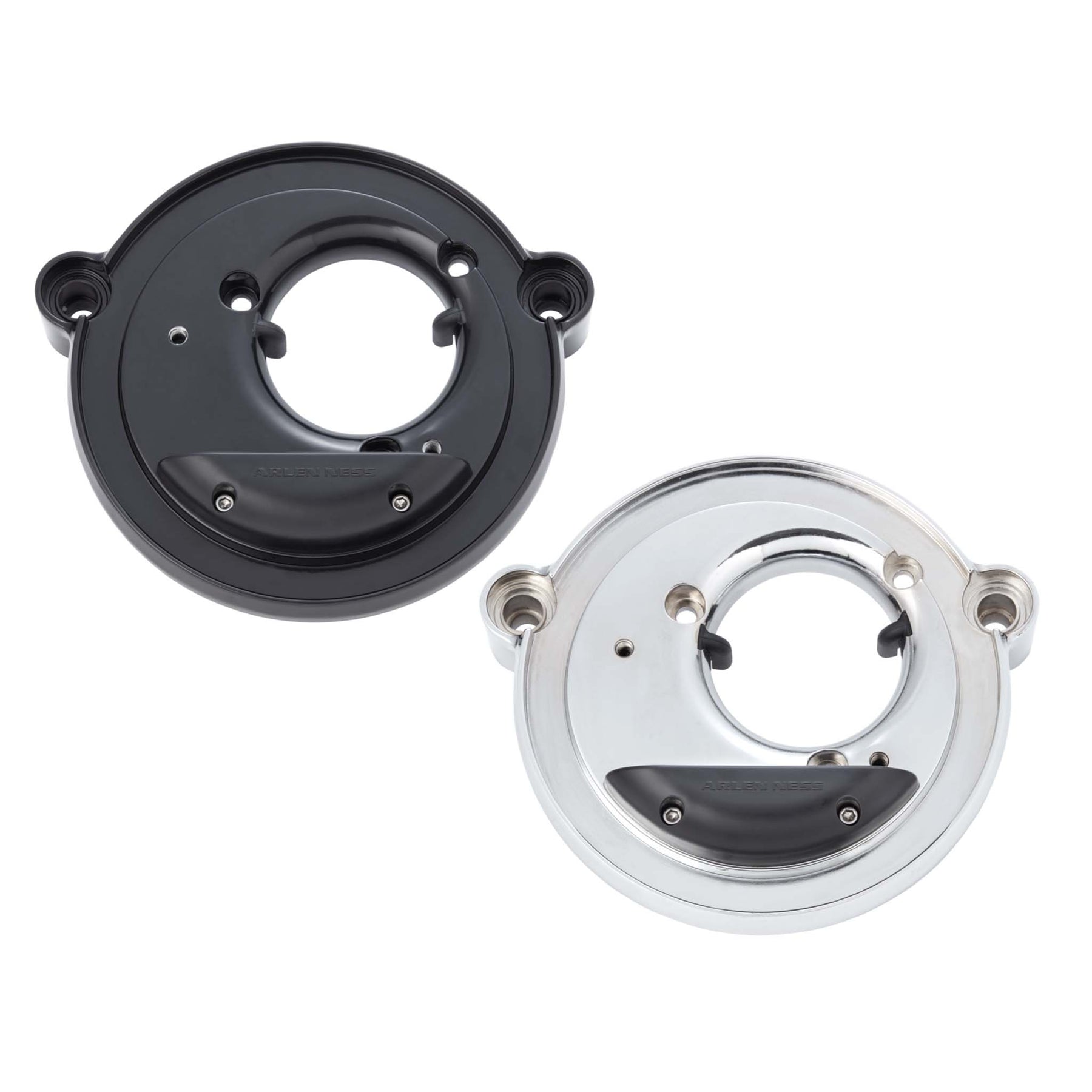

Aluminum Backing Plate:
- Aluminum Construction
- Patent-pending hidden breather backing plate technology is a step up from our original patented system. Each breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through specially formed breather tubes
- Eliminates oil blow-bye issues associated with performance intakes on M8 engines
- Patent-pending oil catch is integrated into the backing plate and stops any excess breather oil from reaching the air filter. Oil catch is serviceable, simply bolt-on and off when your ready to wash/service the air filter
- Formed aluminum filter plate design with integrated mounting studs eliminates any internal mounting hardware
- Radius air inlet engineered to provide maximum airflow
- Outer filter lip covers the urethane on the base of the air filter for a clean look
Performance Air Filter:
- Made from black pre-oiled cotton
- Engineered for optimum air flow and filtration. Perimeter flow design brings in air from all sides of the filter while filtering out all harmful debris
- Washable and re-useable, filter service kits are available
Air Cleaner Cover Options:
- Choose a Arlen Ness® Stage 1 custom cover for an exposed performance look
- 18-up Softail (FLDE/FLSL/FXLR) single-bolt factory air cleaner covers
Fitment
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
- 2017-up FLT Touring / Bagger Models: FLHT / FLHR / FLHX / FLTRX / FLTRU / H-D FL Trike
- 2018-up Softail™ Models
Kit Components (BOM)
Backing Plate Assembly: 18-393C Chrome / 18-394B Black
- Aluminum Backing Plate, Black
- Aluminum Filter Top Plate
- Filter Top Plate Hardware, Stainless Socket Heads ¼ - 20 x 1-1/2” (2)
Patented Breather Vent System Components: Shooter Tubes & Oil Catch
- Oil Catch: 18-392-3
- Oil Catch Gasket: 18-392-4
- Oil Catch Hardware, Stainless Socket Heads 8-32 x ¾: H-619S (2)
- Shooter / Breather Tube Kit: BT-001
Stage 1 Hardware Kit, M8: HK-18458
- Breather Bolts, Chrome: 18-457-4C (2)
- Throttle Body Gasket: 18-457-3
- Breather Bolt O-Rings: H-024-4 (4)
Logo Plate / Throttle Body Badge Assembly
- Throttle Body Logo Badge: 18-203-8
- Throttle Body Badge, Black Button Heads M6 x 1.0: HM-122B (2)
Additional Components:
- Outer Cover Hardware, Chrome Flat Head 5/16-18 x 5/8: H-525C
- Instruction Sheet: 18392-I
