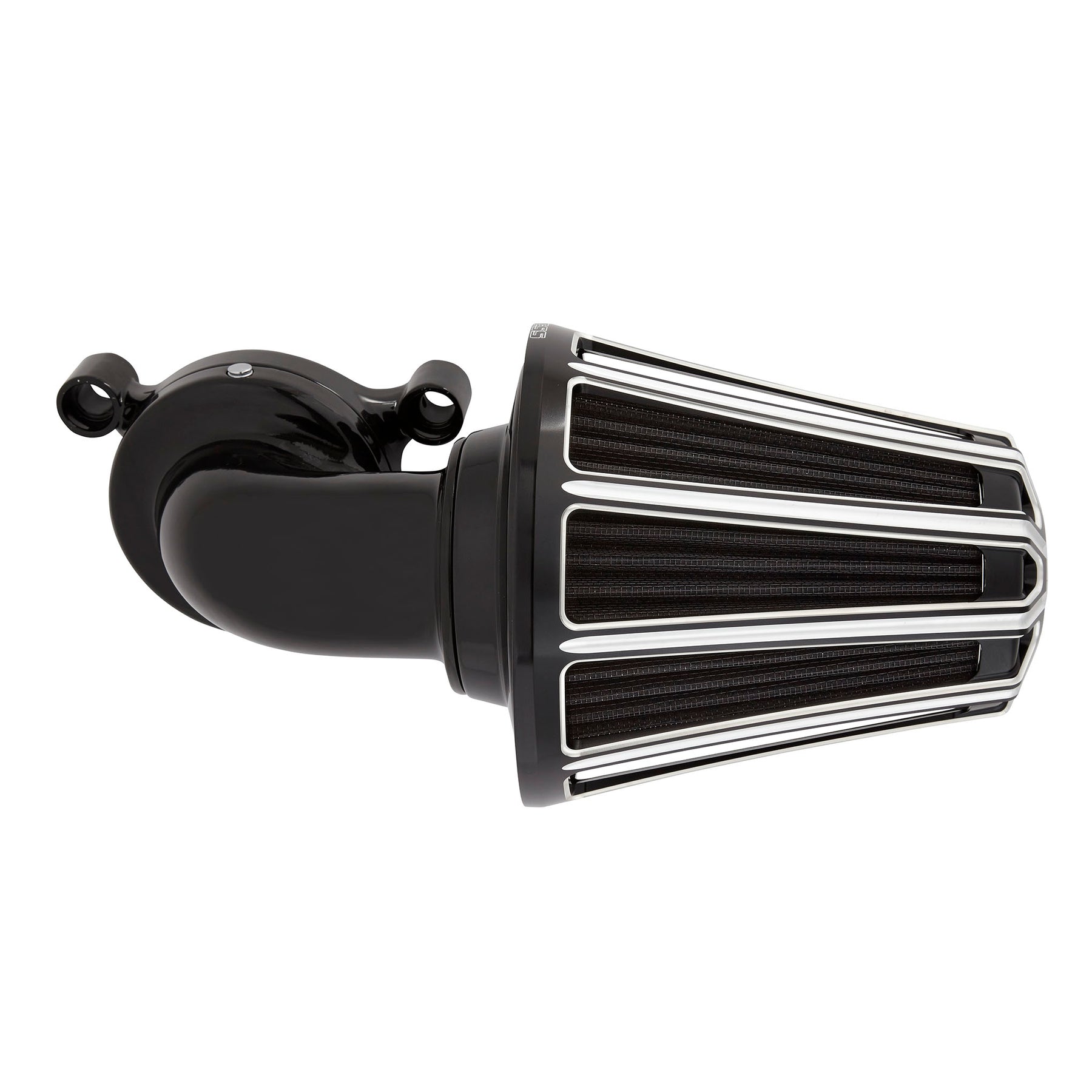

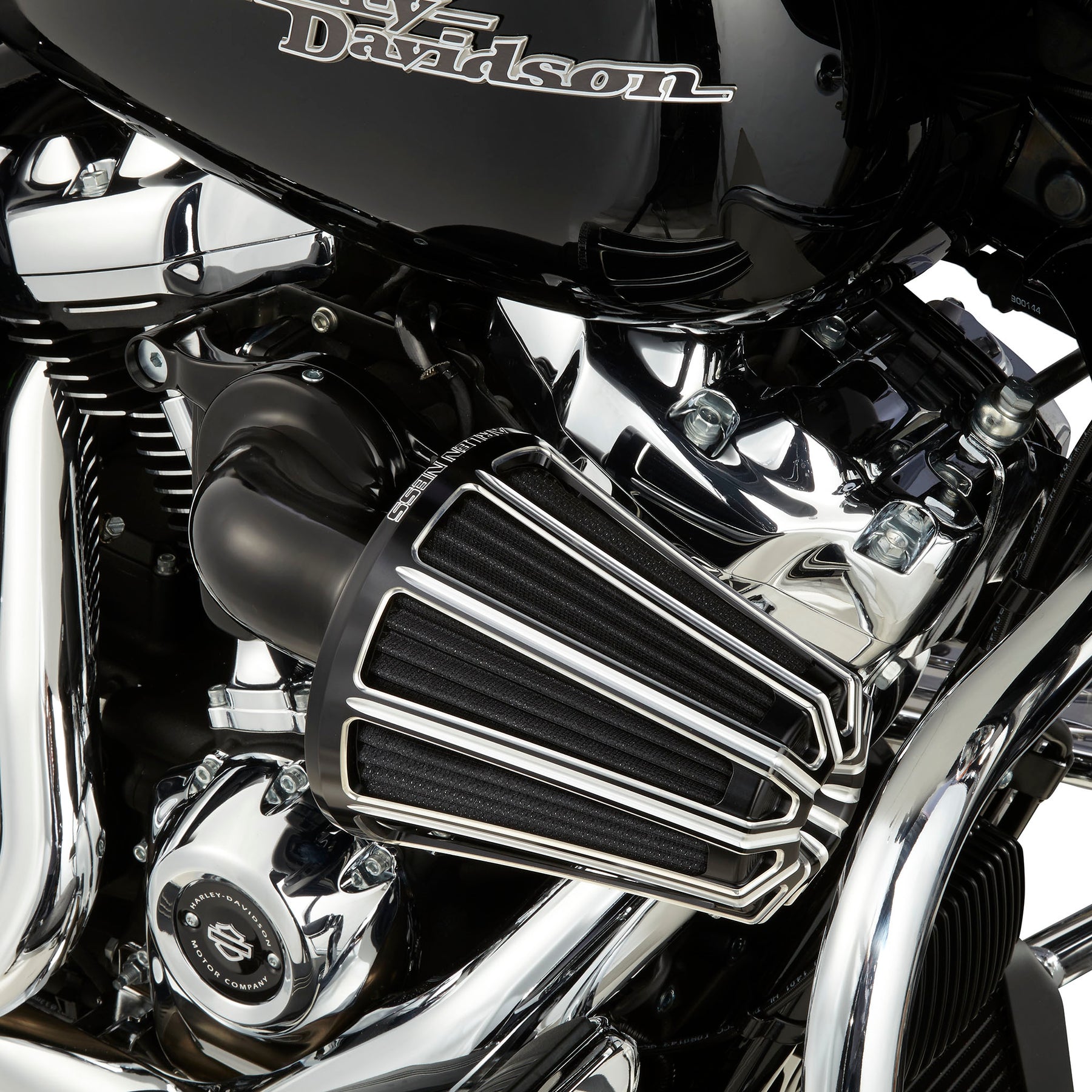

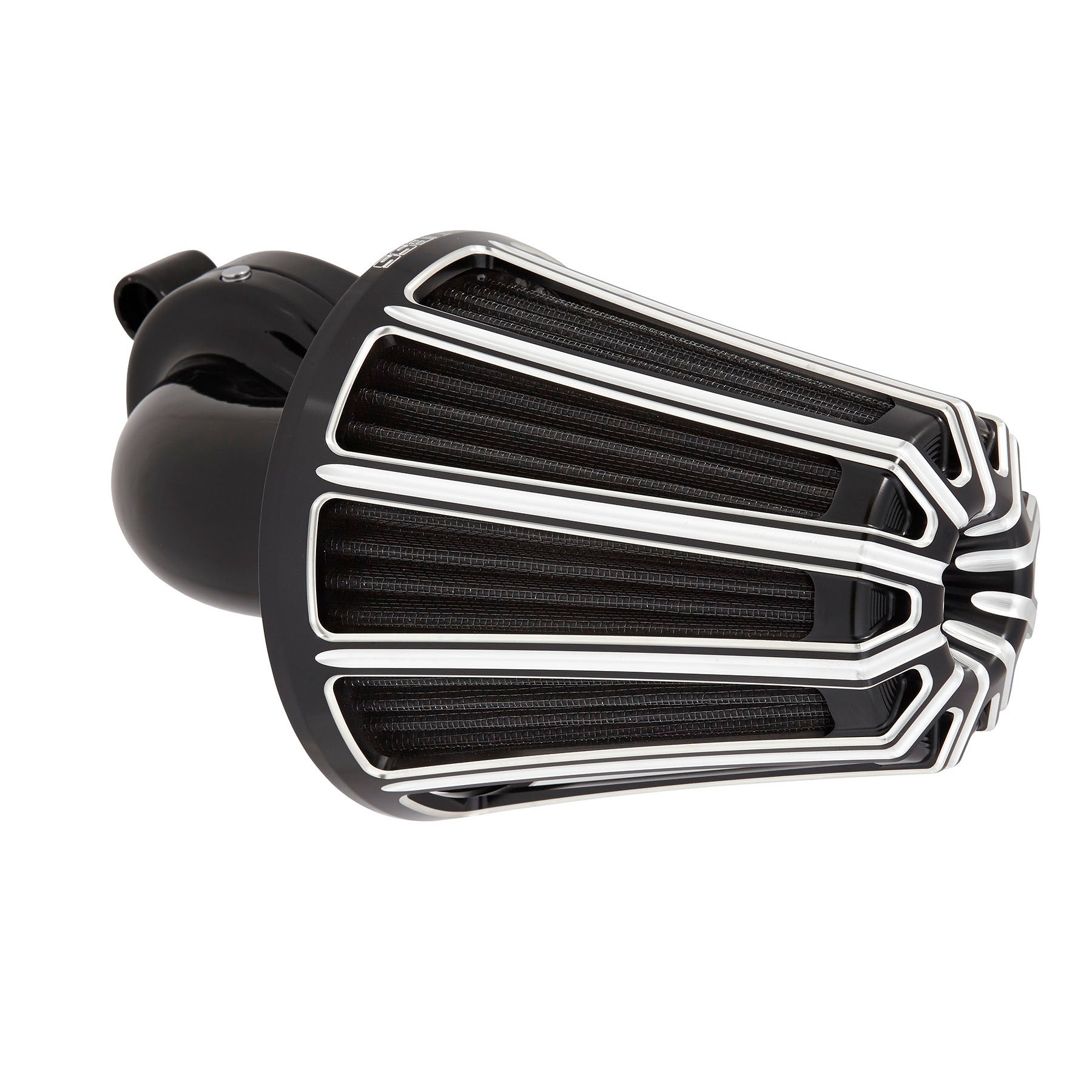

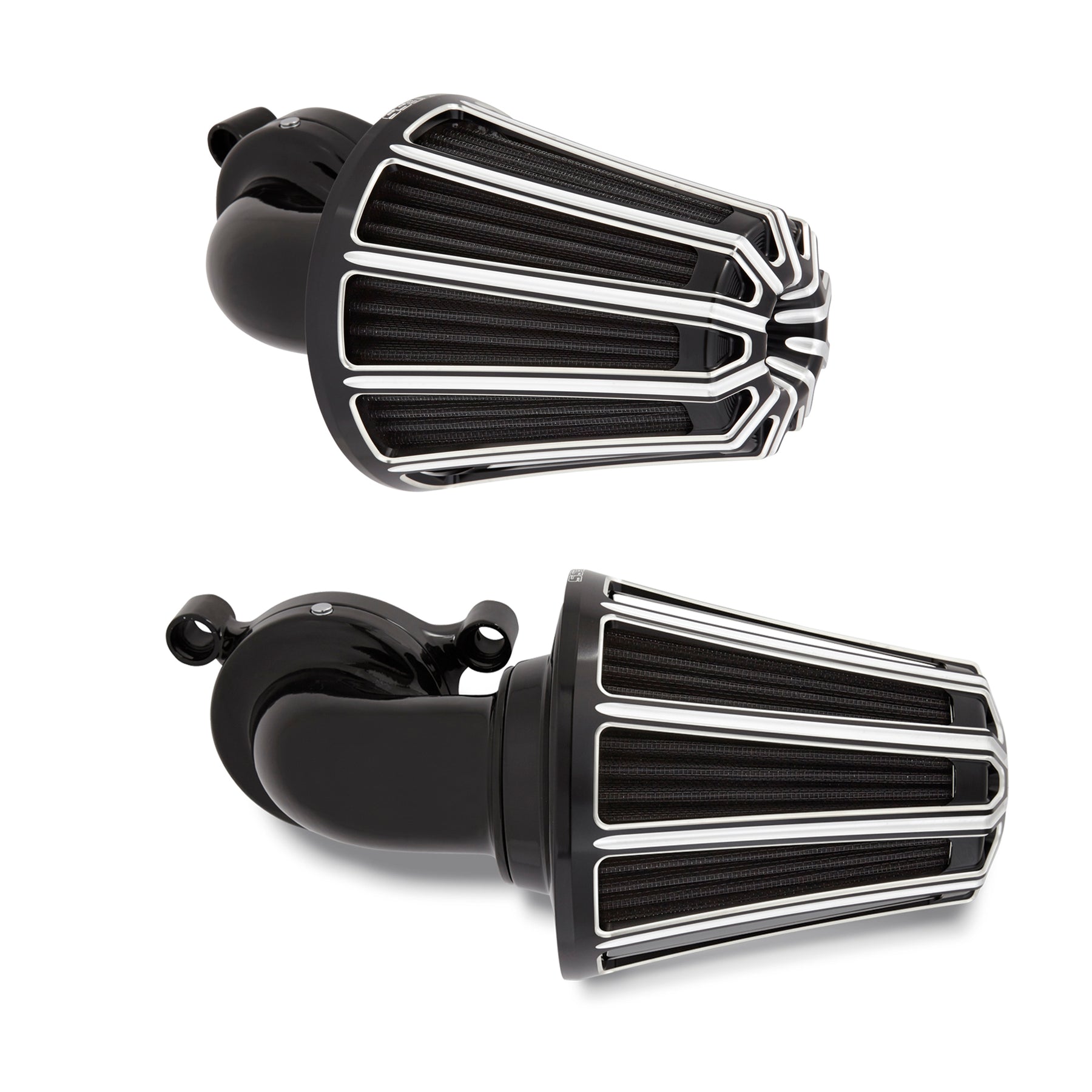

10-Gauge® Monster Sucker® Air Cleaner, Black
The 10-Gauge® Monster Sucker® is a 90° performance air cleaner that features a massive forward facing filter design and our patented hidden breather backing technology for a reliable intake that enhances the performance of the engine. 10-Gauge® air filter cover is forged & CNC machined from billet aluminum
- 10-Gauge®
- 90° Forward-Facing Intake Design
- Patented Hidden Breather Technology
- High performance black oiled cotton air filter
- Massive filter design & inverted filter top for more airflow
- Increased Horsepower, torque & mileage
- Excellent legroom
- Aluminum backing plate and elbow
- Black powdercoat & black anodize finishes
California Air Resource Board: Executive Order D-639-12_R-01
California Prop 65:
Learn More
ALUMINUM ONE-PIECE BACKING PLATE:
- Made from aluminum
- Our patented hidden breather technology is o-ringed at the heads and exist out the mouth of the injector/carb to provide efficient engine breathing, eliminating the need for any external hoses or hardware for a virtually closed loop system
- Smooth and sculpted backing plate shape wraps around the throttle body for excellent leg room
- Milwaukee-Eight® (M8) engine applications include a formed throttle servo cover that is finished in black powdercoat
- Triple-bolt flush mount elbow mounting design
- Will not work with factory bagger lower fairings (lowers)
HIGH PERFORMANCE AIR FILTER
- High performance air filter made from black synthetic material
- More filter surface area then any other 90° degree air cleaner kit on the market, air is pulled in from the sides of the filter as well as the front through the inverted pleated top
- Synthetic filters are water resistant & do not require oil, washable/re-useable
- Chrome plated filter top with Arlen Ness® logo
- Forged billet air filter covers are available, covers can be added to any Monster Sucker® intake
ALUMINUM AIR CLEANER ELBOW & OUTER COVER
- 90° aluminum single-piece design
- Hidden air filter clamping area for no exposed clamps resulting in a clean look
- Outer decorative cover is CNC machined from forged billet aluminum
- Cover features an inverted top to direct airflow into the top of the filter
00-17 TWIN CAM (EXCEPT: FBW)
- 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
- 1999-2006 Twin Cam CV Carb
- *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT
08-16 TOURING / 16-17 SOFTAIL (FBW)
- 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
- 2016-2017 Softails
- 2016-2017 Dyna FXDLS
- 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
- *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)
91-UP XL SPORTSTER
- 1991-up Sportster 883 / 1200 with CV Carb or Delphi EFI
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
- 2017-up FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR
- 2018-up Softail Models
BACKING PLATE ASSEMBLY (FITMENT SPECIFIC)
08-16 FLT / 16-17 SOFTAIL & FXDLS (FBW)
Backing Plate: 81-005-1B
Breather Bolts: 81-005-2C (2)
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
00-17 TWIN CAM (EXC. FBW)
Backing Plate: 81-000-1B
Breather Bolts: 81-005-2C
Breather Bolt Copper Washers:H-070
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-510-2
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Throttle Body Elbow Intake Cover: 81-005-3B
Throttle Body Elbow Cover bolts 6-32x14 Flathead Allen: H504S (2)
91-UP XL SPORTSTER
Backing Plate: 81-010-1B
Breather Bolts: 81-010-3C (2)
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Manifold Spacer: 18-492-2
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
Backing Plate: 81-015-1B
Breather Bolts: 18-457-4C
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-457-3
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
M8 Throttle Body Badge: 18-203-8
M8 Servo Cover: 81-016-1B
Stainless Steel Washers: H-338S(3)
6-32 X ¼ Sockethead: H-507Z (3)
ELBOW & FILTER ASSEMBLY
Intake Elbow: 81-000-2B
Filter Base Cover: 81-000-5B
3M Tape 94 Primer: H-087
O-Ring - Bracket to Elbow: H-072
Intake Elbow Socket Bolts: H-654Z (3)
Monster Performance Air Filter: 81-000-3
10-Gauge Outer Cover, Black: 81-100-2B
Rear Outer Cover, Black: 81-100-1B
