Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover
Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover

Big Sucker™ Air Cleaner for 17-up M8 FLT, Factory Cover

$159.95
Qty

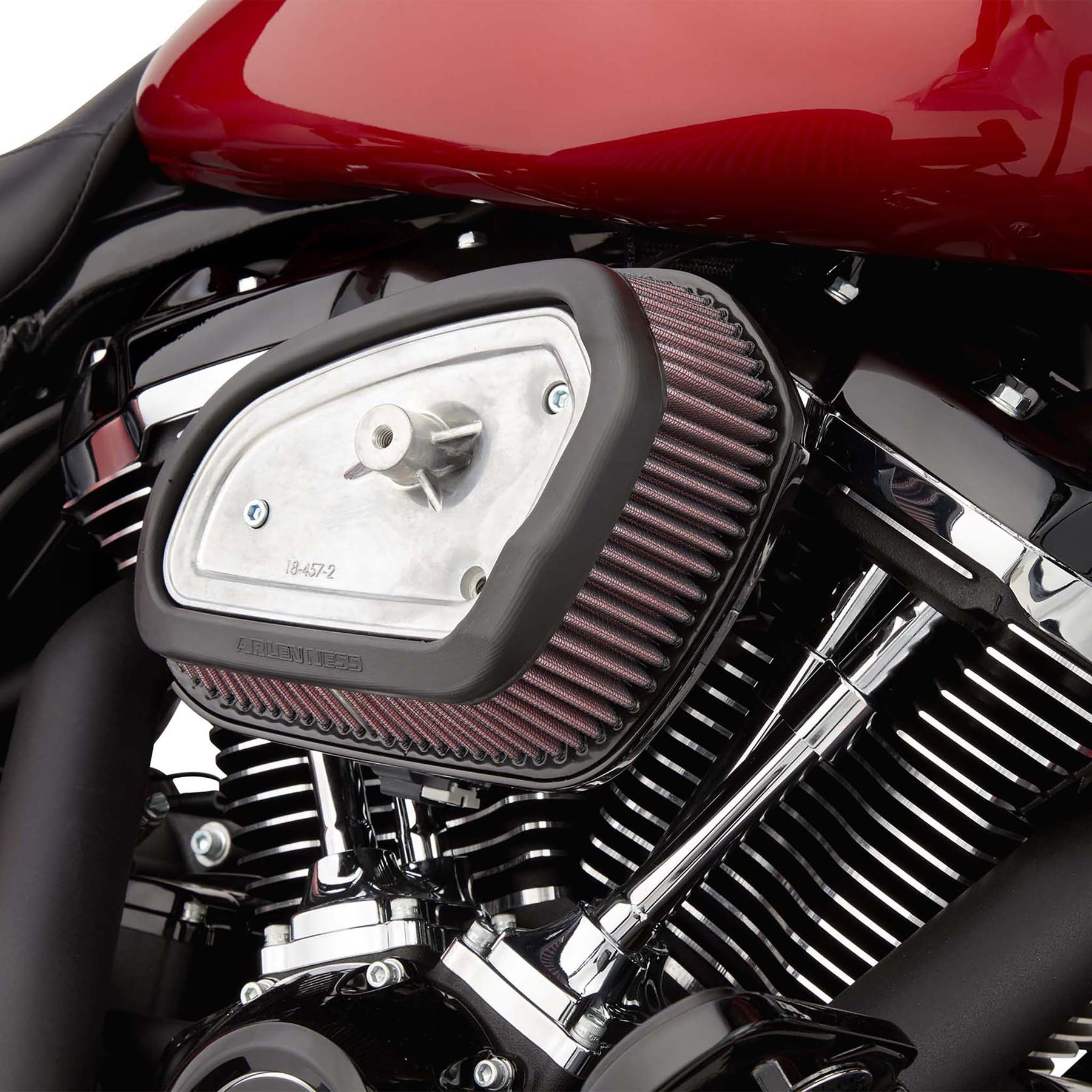

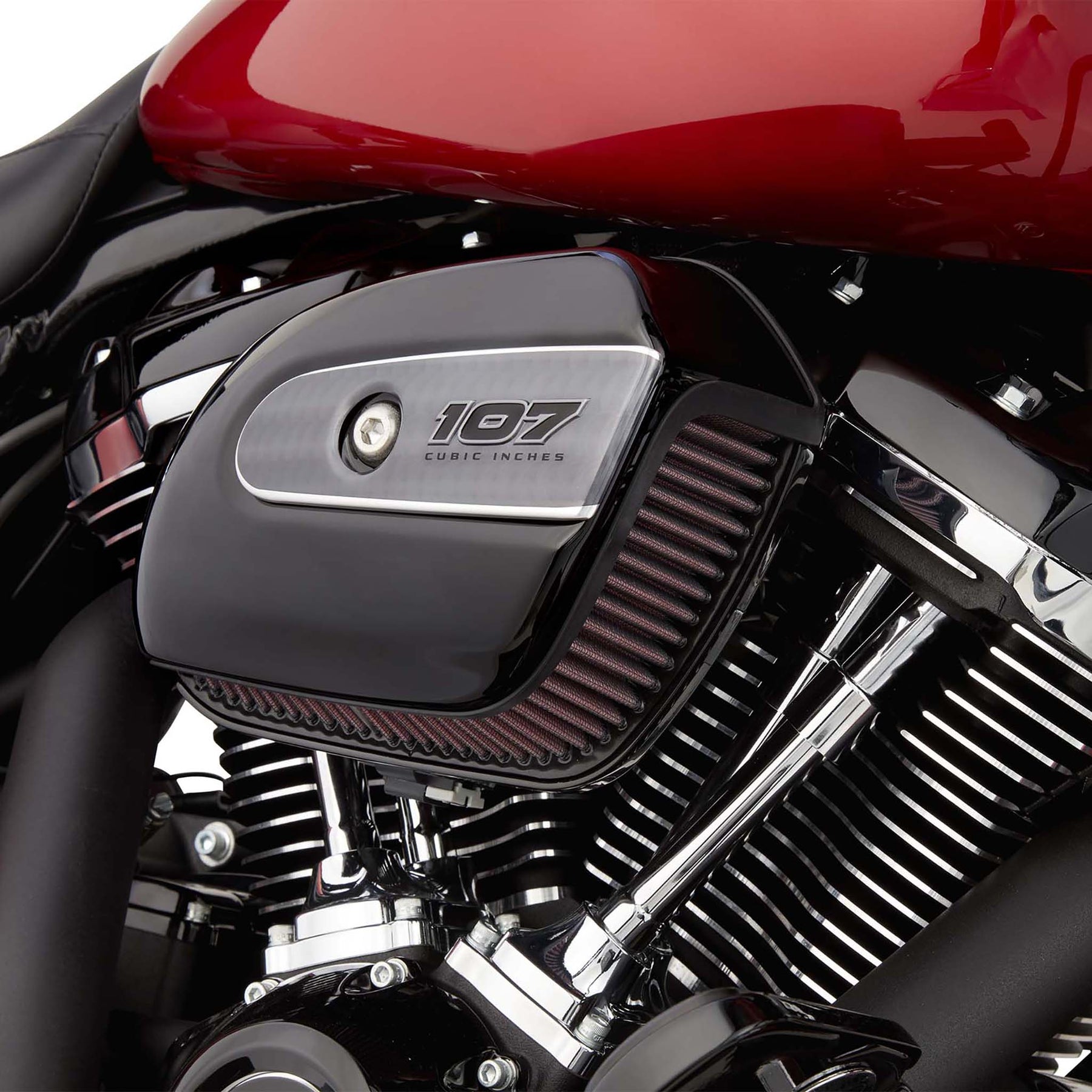

The Big Sucker performance air cleaner for Milwaukee-Eight (M8) 17-up FLT Baggers is specially designed to pull in the most air possible under the factory air cleaner cover. The backing plate features a new patent-pending hidden breather system and a formed aluminum internal design resulting in more performance with no oil blow-bye issues. The newly integrated patent-pending oil catch makes sure no oil ever touches the massive perimeter-flow air filter.

  • Increases Horsepower & Torque
  • Eliminates Oil Blow-bye Issues Associated with M8 Engines
  • Red Pre-Oiled High Performance Filter
  • Patent-Pending Oil Catch / Reservoir
  • Patent-Pending Hidden Breather Backing Plate
  • Aluminum Filter Top Plate Design Eliminates Internal Mounting Hardware
  • Specially Formed Radius Air Inlet & Air Venturi

California Air Resource Board: Executive Order D-639-8

Description

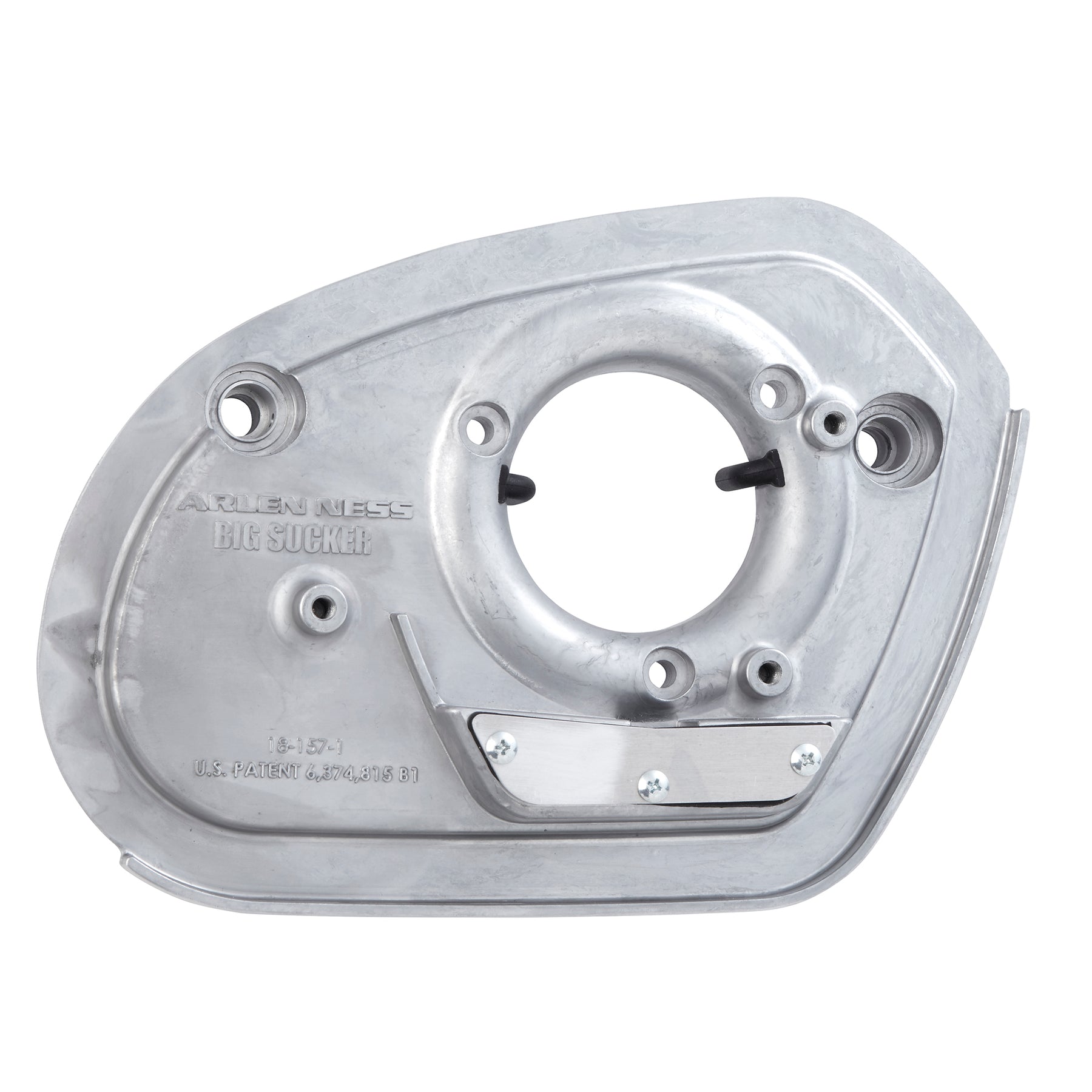

Patent-Pending Backing Plate:

  • Aluminum
  • Patent-pending hidden breather technology is an enhanced version of our our original patented system. Each breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through specially formed breather tubes
  • Eliminates oil blow-bye  issues associated with performance intakes on M8 engines
  • Patent-pending oil catch is integrated into the backing plate and acts as a reservoir by stopping any excess breather oil from ever reaching the air filter. Serviceable design, simply bolt-on and off to wash
  • Formed radius air inlet engineered to provide unobstructed airflow
  • Outer filter lip matches up with the factory air cleaner perfectly and covers the urethane on the base of the air filter for a clean look

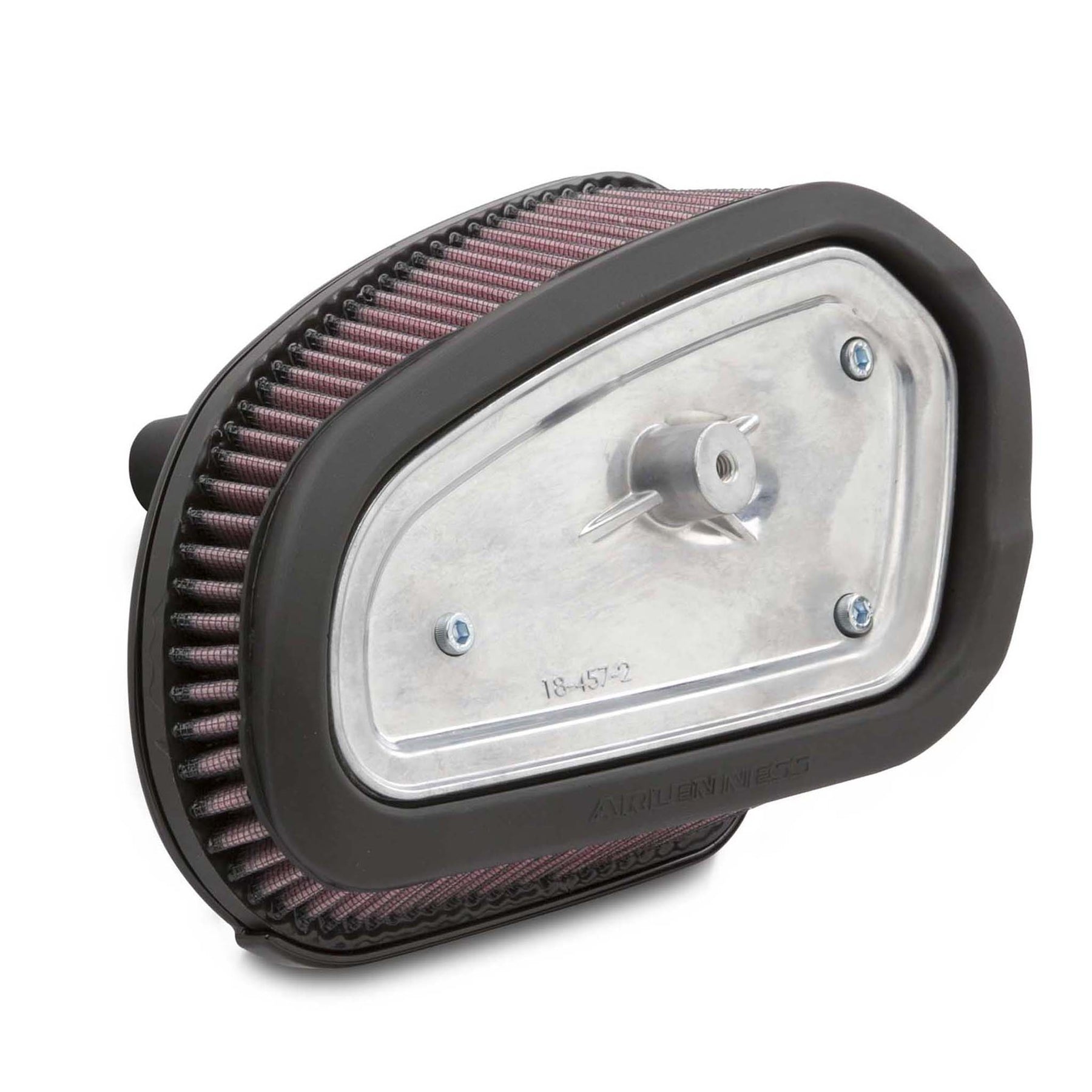

Performance Air Filter:

  • Made from red pre-oiled cotton
  • Engineered for optimum air flow and filtration. Perimeter flow design brings in air from all sides of the filter while filtering out all harmful debris
  • Massive size, over 200% more filter surface area than the factory air filter. Features pleated material around the entire perimeter of the filter
  • Washable and re-useable, filter service kits are available

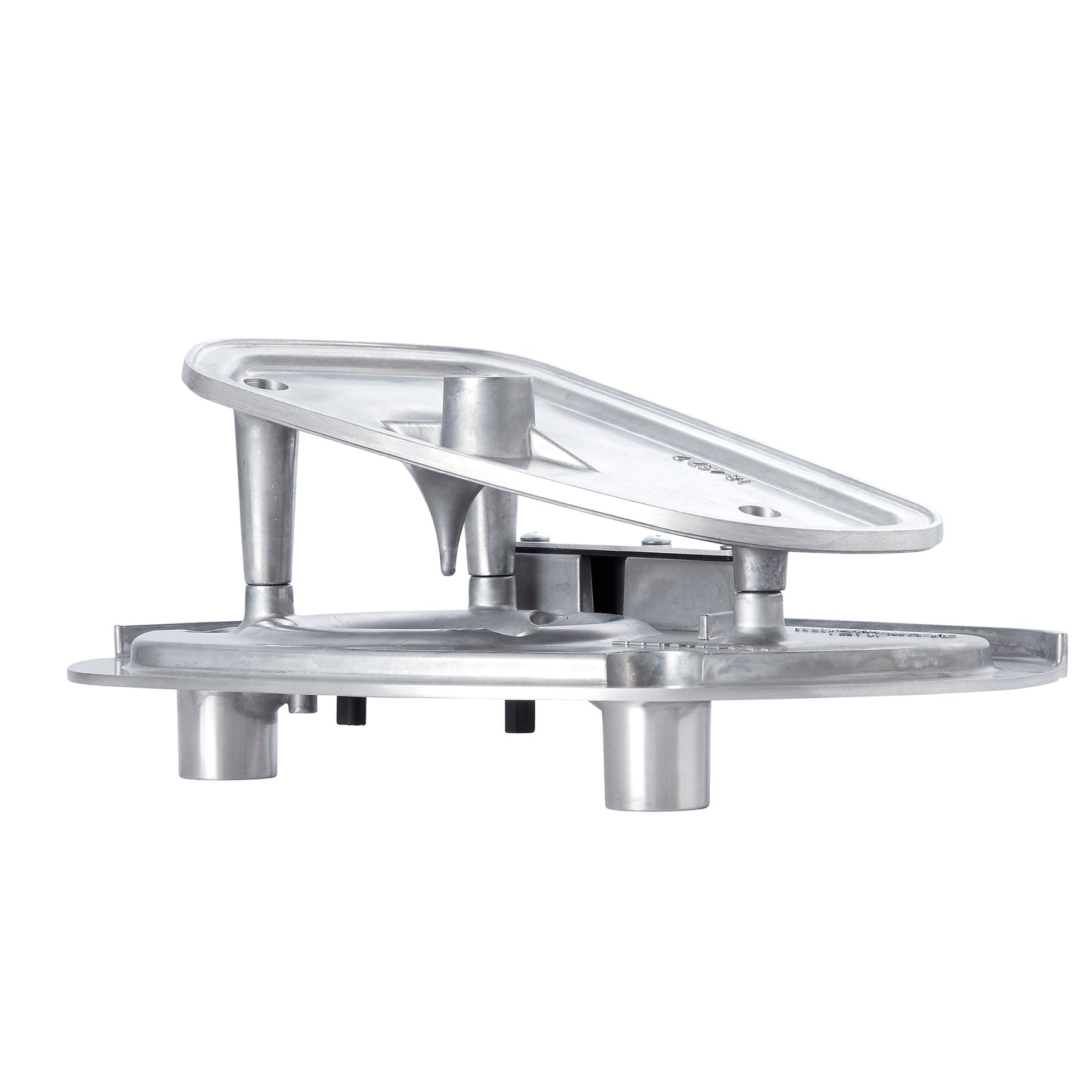

Filter Top Plate:

  • Aluminum
  • Specially formed to secure the air filter and mount directly to the backing plate
  • The design eliminates any internal mounting hardware for increased durability
  • Integrated air venturi directs air into the throttle body
Fitment

2017

  • Road King FLHR
  • Road King Special FLHRXS
  • Electra Glide Ultra Classic FLHTCU
  • Ultra Limited FLHTK
  • Ultra Limited Low FLHTCU
  • CVO Limited FLHTKSE
  • Street Glide FLHX
  • Street Glide Special FLHXS
  • CVO Street Glide FLHXSE
  • Road Glide Ultra FLTRU
  • Road Glide FLTRX
  • Road Glide Special FLTRXS
  • Tri Glide Ultra FLHTCUTG
  • Freewheeler FLRT



2018

  • Road King FLHR
  • Road King Special FLHRXS
  • Electra Glide Ultra Classic FLHTCU
  • Ultra Limited FLHTK
  • Ultra Limited Low FLHTCU
  • CVO Limited FLHTKSE
  • Street Glide FLHX
  • Street Glide Special FLHXS
  • CVO Street Glide FLHXSE
  • Road Glide Ultra FLTRU
  • Road Glide FLTRX
  • Road Glide Special FLTRXS
  • Tri Glide Ultra FLHTCUTG
  • Freewheeler FLRT

2019

  • Road King FLHR
  • Road King Special FLHRXS
  • Electra Glide Ultra Classic FLHTCU
  • Ultra Limited FLHTK
  • Ultra Limited Low FLHTCU
  • CVO Limited FLHTKSE
  • Street Glide FLHX
  • Street Glide Special FLHXS
  • CVO Street Glide FLHXSE
  • Road Glide Ultra FLTRU
  • Road Glide FLTRX
  • Road Glide Special FLTRXS
  • Tri Glide Ultra FLHTCUTG
Kit Components (BOM)

Backing Plate Assembly: 18-393C Chrome / 18-394B Black

  • Aluminum Backing Plate, Black
  • Aluminum Filter Top Plate
  • Filter Top Plate Hardware, Stainless Socket Heads ¼ - 20 x 1-1/2” (2)

Patented Breather Vent System Components: Shooter Tubes & Oil Catch

  • Oil Catch: 18-392-3
  • Oil Catch Gasket: 18-392-4
  • Oil Catch Hardware, Stainless Socket Heads 8-32 x ¾: H-619S (2)
  • Shooter / Breather Tube Kit: BT-001

Stage 1 Hardware Kit, M8: HK-18458

  • Breather Bolts, Chrome: 18-457-4C (2)
  • Throttle Body Gasket: 18-457-3
  • Breather Bolt O-Rings: H-024-4 (4)

Logo Plate / Throttle Body Badge Assembly

  • Throttle Body Logo Badge: 18-203-8
  • Throttle Body Badge, Black Button Heads M6 x 1.0: HM-122B (2)

Additional Components:

  • Outer Cover Hardware, Chrome Flat Head 5/16-18 x 5/8: H-525C
  • Instruction Sheet: 18392-I
